FKMCASE SHOW

【FKM】DN125氟膠單球橡膠接頭“生產廠家”

服務內容：【FKM】DN125氟膠單球橡膠接頭“生產廠家”

簡介：【FKM】DN125氟膠單球橡膠接頭“生產廠家” DN125 fluorine rubber single ball rubber connector "manufacturer" 上海淞江減震器集團有限公司官方網站為您介紹：【FKM】DN125氟膠單球橡膠接頭“生產廠家”信息......

【FKM】DN125氟膠單球橡膠接頭“生產廠家”
DN125 fluorine rubber single ball rubber connector "manufacturer"

上海淞江減震器集團有限公司官方網站為您介紹：【FKM】DN125氟膠單球橡膠接頭“生產廠家”信息，淞江集團為客戶提供氟膠單球橡膠接頭，采用氟橡膠生產，具有良好的耐強酸和耐高溫效果，主要用于化工廠管道系統。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [FKM] DN125 Fluorine rubber single ball rubber joint "manufacturer" information, Meijiang Group to provide customers with fluorine rubber single ball rubber joint, using fluorine rubber production, with good acid and alkali resistance and high temperature resistance, mainly used in chemical plant pipeline system.

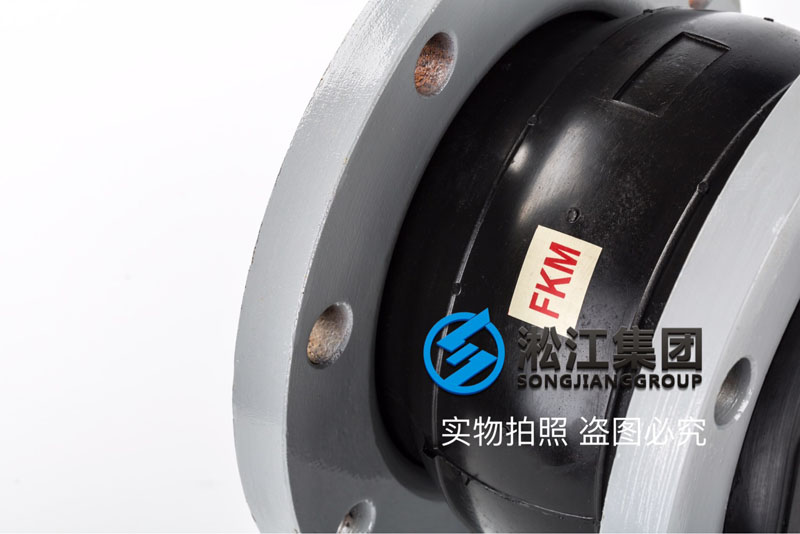

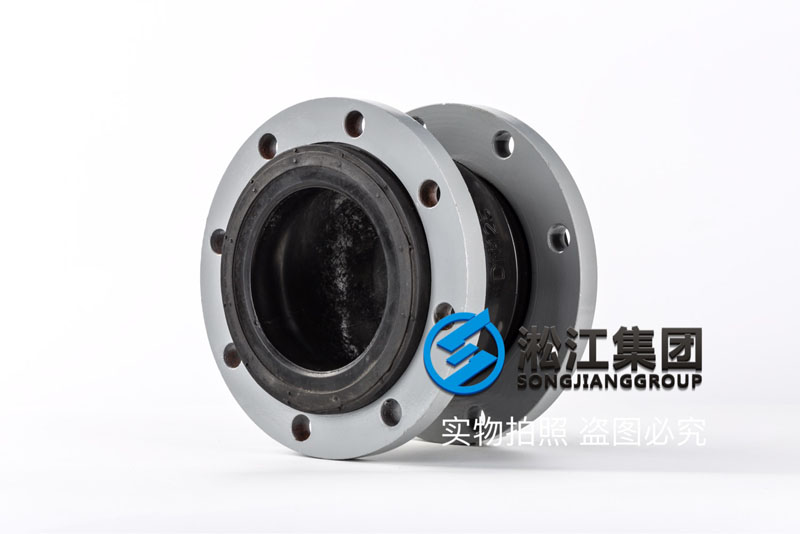

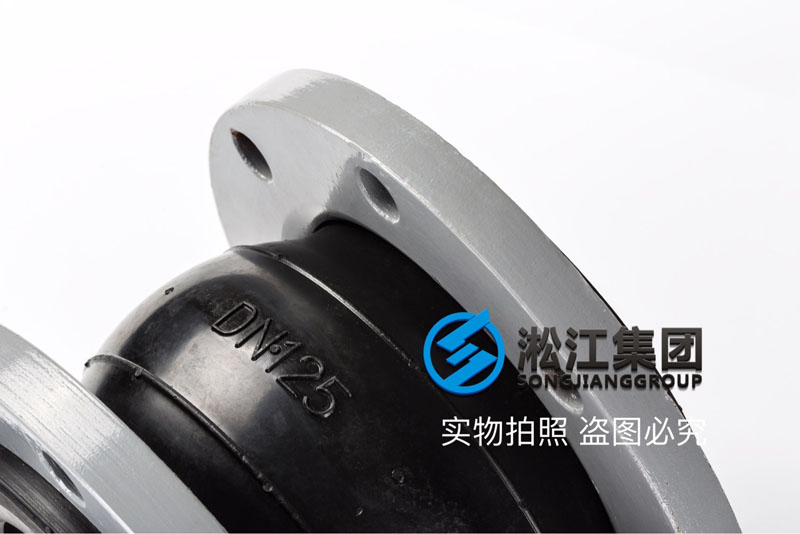

一、DN125氟膠單球橡膠接頭實物拍照：

二、DN125氟膠單球橡膠接頭參數介紹：

名稱：氟膠單球橡膠接頭

型號：DN125

安裝長度：165mm

軸向壓縮：18mm

軸向伸長：10mm

軸向拉伸：10mm

橫向位移：12mm

偏轉角度：15°

標準：GB/T 9119-2000

壓力：PN16

法蘭：碳鋼 / 球墨

介質：強酸、高溫120度以下

質保：1年

橡膠材質：氟橡膠（FKM）

了解該產品更多型號參數表請點擊：【樣冊P33】KXT型可曲撓橡膠接頭

使用優點：減震、降噪、保護管道設備的長期使用，降低維修成本。

生產廠家：上海淞江減震器集團有限公司

資質證書：合格證、質保書、檢驗報告、德國萊茵TUV認證、國家型式試驗報告、第三方性能檢測報告、材質報告等。

Name: fluorine rubber single ball rubber joint

Model: DN125

Installation length: 165mm

Axial compression: 18mm

Axial elongation: 10mm

Axial tension: 10mm

Lateral displacement: 12mm

Deflection angle: 15 degrees.

Standard: GB/T 9119-2000

Pressure: PN16

Flange: carbon steel / spheroidal graphite

Medium: acid base, high temperature below 120 degrees.

Warranty: 1 years

Rubber material: fluorine rubber (FKM)

Advantages: shock absorption, noise reduction, protection of pipeline equipment for long-term use, and reduction of maintenance costs.

Manufacturer: Shanghai Songjiang shock absorber Group Co., Ltd.

Qualification Certificate: Qualification Certificate, Quality Guarantee, Inspection Report, TS Pressure Pipeline Production License of Rubber Joint Industry, National Type Test Report, Third Party Performance Test Report, Material Report, etc.

三、DN125氟膠單球橡膠接頭公司介紹：
The following is the introduction of Songjiang group
