【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

服務內容：【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

簡介：【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高” QT450 ductile flange rubber joint "good toughness and high plasticity" 上海淞江減震器集團有限公司官方網站為您介紹：【新品】QT450球墨法蘭橡膠接頭“韌......

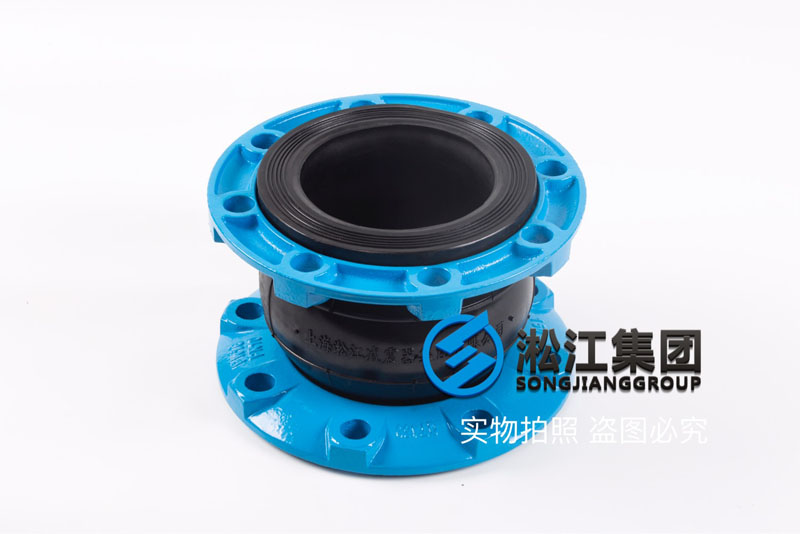

【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”
QT450 ductile flange rubber joint "good toughness and high plasticity"

上海淞江減震器集團有限公司官方網站為您介紹：【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”信息，淞江集團為眾多客戶提供更優質的產品，不斷開發新產品，不斷的走在行業的前沿，又一新產品橫空出世，QT450球墨法蘭橡膠接頭已經悄然上市。
The official website of Shanghai Meijiang Shock Absorber Group Co., Ltd. [New Product] QT450 Spheroidal Ink Flange Rubber Joint "Good Toughness and Plasticity" information, Meijiang Group for many customers to provide better products, continuous development of new products, constantly walking in the forefront of the industry, another new product appeared, QT450 Spheroidal Ink Flange Rubber joints have been listed quietly.

常規型：

天然橡膠，普通過水，80度以下，無腐蝕。
Natural rubber: ordinary water, less than 80 degrees, no corrosion.

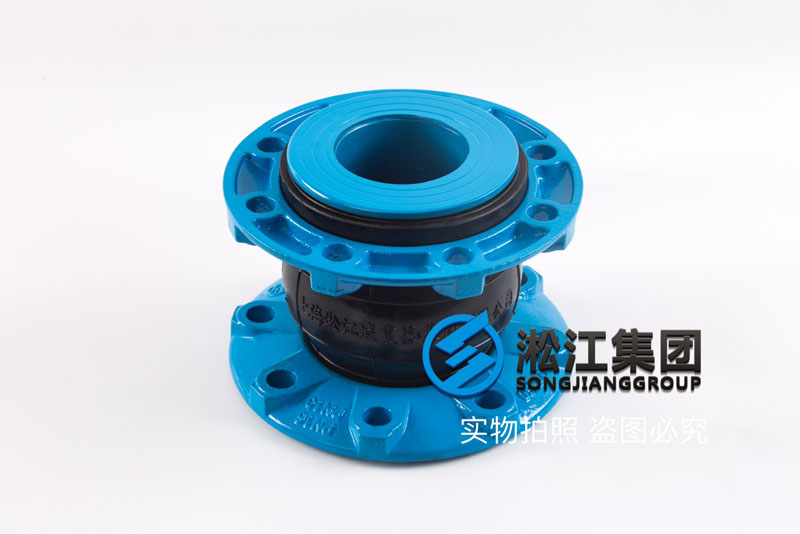

【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

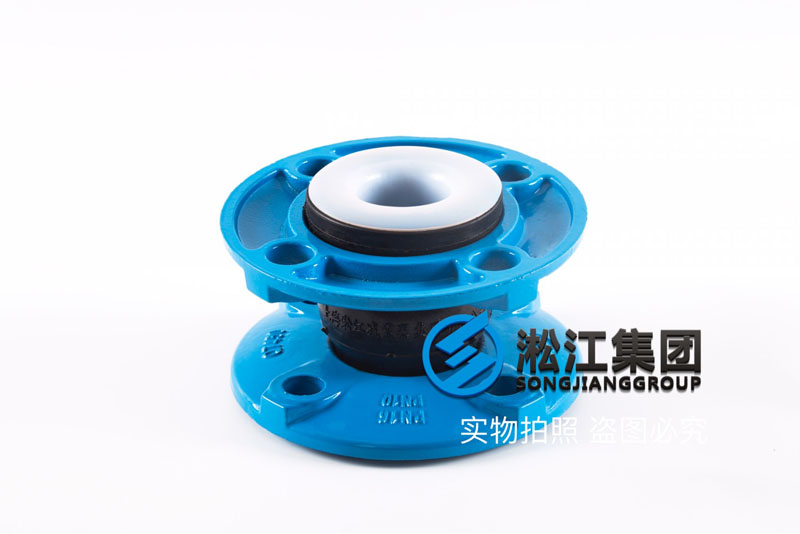

耐酸堿型：

內襯聚四氟乙烯，可耐強酸堿，耐高溫120度以下。
Acid and alkali resistant type: lined with polytetrafluoroethylene, strong acid and alkali resistant, high temperature below 120 degrees.

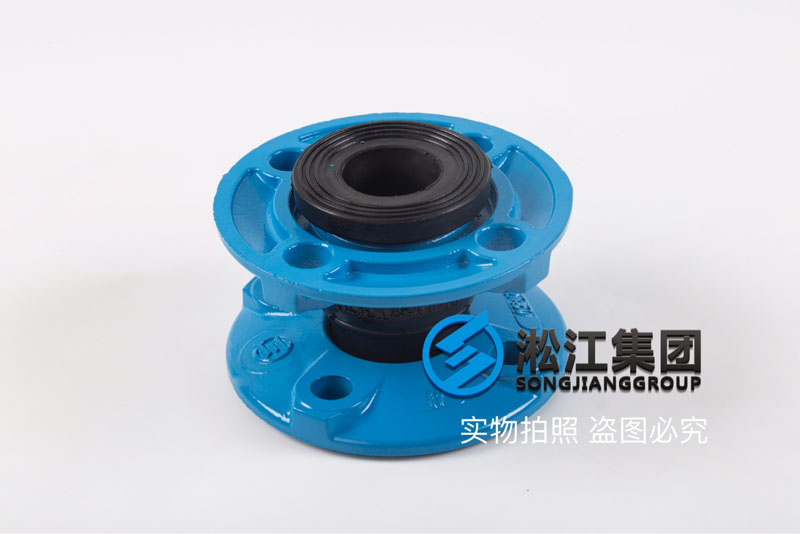

【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

耐磨、耐負壓型：

采用內襯導流筒，具有耐磨、耐負壓真空的功能，導流筒材質標配為碳鋼，也可以做不銹鋼，導流筒的增加不會影響到橡膠接頭的減震、降噪、伸長、壓縮、位移等效果。
Wear-resisting and negative pressure-resisting type: The inner-lined guide barrel has the function of wear-resisting and vacuum-resisting. The guide barrel is made of carbon steel and stainless steel. The increase of the guide barrel will not affect the damping, noise reduction, elongation, compression and displacement of the rubber joint.
【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

耐油型：

采用丁腈橡膠生產，其中含量在50%左右，具有良好的耐液壓油、潤滑油、乳化液等效果，耐溫120度以下。
Oil-resistant type: NBR production, which content is about 50%, has good resistance to hydraulic oil, lubricating oil, emulsion and other effects, temperature below 120 degrees.
【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

QT450球墨鑄鐵介紹：

為鐵素體型球墨鑄鐵，韌性和塑性較高。低溫時，韌性向脆性轉變，但低溫沖擊值較高，且有一定的抗溫度急性變和耐蝕性。用途較廣，在農機中用于鏵犁、犁柱、差速器殼等；通用機械中用作閥體、高低壓氣缸等；還可用于輸電線路的鋼帽等。

球墨鑄鐵是碳以球形石墨的形態存在，其機械性能遠勝于灰口鐵而接近于鋼，它具有優良的鑄造、切削加工和耐磨性能，有一定的彈性，廣泛用于制造曲軸、齒輪、活塞等高級鑄件以及多種機械零件。

QT450 ductile iron introduction:

For ductile iron with ferrite type, toughness and plasticity are high. At low temperature, toughness changes to brittleness, but low temperature impact value is higher, and has certain resistance to temperature acute change and corrosion resistance. It is widely used in agricultural machinery, such as plough, plough column, differential case, etc. It is also used as valve body, high and low pressure cylinder in general machinery, steel cap of transmission line, etc.

Ductile iron is a kind of carbon which exists in the form of spherical graphite. Its mechanical properties are much better than gray iron and close to steel. It has excellent casting, cutting and wear resistance. It has certain elasticity and is widely used in manufacturing high-grade castings such as crankshafts, gears, pistons and many kinds of mechanical parts.

球墨法蘭橡膠接頭優點：

1、體積小、重量輕、彈性好、安裝維修方便。

2、安裝后可吸收管道震動產生的橫向、軸向、角向位移；不受管道不同心，法蘭不平行的限制。

3、安裝后可降低管道水泵等震動產生的噪音，吸振能力強。

4、內無縫高壓橡膠接頭，在耐高溫、耐酸堿、耐油的管道中更有效地防止了腐蝕性介質對橡膠接頭內壁的侵蝕，提高了使用壽命。

5、具有良好的綜合性能，所以它廣泛用于化工、建筑、給水、排水、石油、輕重工業、冷凍、衛生、水暖、消防、電力等基礎工程。
6、根據材料不同可制成耐酸、耐堿、耐腐蝕、耐油、耐高溫、耐輻射、耐磨、耐老化等各個品種，適應多種介質和環境。

7、了解該產品參數信息請點擊：【樣冊P33】KXT型可曲撓橡膠接頭

The advantages of the rubber flange joint are:

1, small volume, light weight, good elasticity, easy installation and maintenance.

2. After installation, it can absorb transverse, axial and angular displacement caused by pipeline vibration; it is not restricted by pipeline dislocation and flange non-parallel.

3, after installation, it can reduce the vibration and noise generated by pipes and pumps.

4. The inner seamless high pressure rubber joint can effectively prevent the corrosion of corrosive medium to the inner wall of the rubber joint in the pipeline with high temperature resistance, acid and alkali resistance and oil resistance, and improve the service life.

5. It has good comprehensive performance, so it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industries, refrigeration, sanitation, water heating, fire protection, electricity and other basic projects.

6. According to the different materials can be made into acid-resistant, alkali-resistant, corrosion-resistant, oil-resistant, high temperature-resistant, radiation-resistant, wear-resistant, aging-resistant and other varieties, adapt to a variety of media and environment.

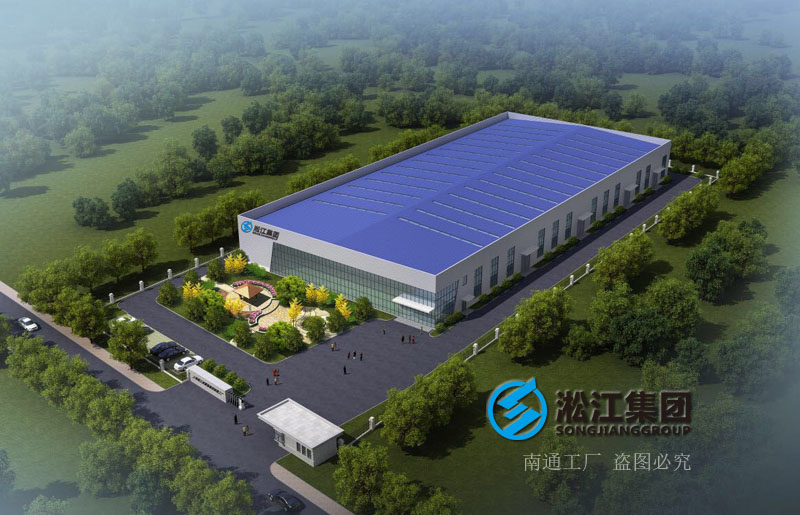

2018年12月淞江集團搬遷至南通工廠：
Songjiang group moved to Nantong factory in December 2018
【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”

2018年上海國際泵閥展會現場：
2018 Shanghai international pump and valve exhibition site

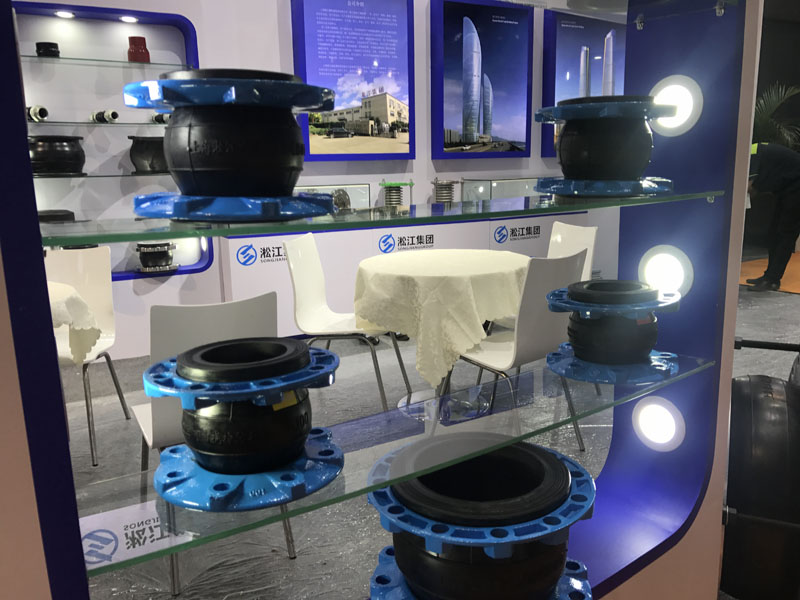

QT450球墨法蘭橡膠接頭新品在上海國際泵閥展亮相：
QT450 nodular flange joint new product appeared at Shanghai international pump and valve Exhibition
【新品】QT450球墨法蘭橡膠接頭“韌性好塑性高”
