【實物剖析】單球橡膠接頭剖析“教你看清真面目”

上海淞江減震器集團有限公司官方網站為您介紹：【實物剖析】淞江集團單球橡膠接頭剖析“教你看清真面目”信息，淞江集團為網民提供橡膠接頭行業的性知識，教會你如何火眼金睛辨別一個好產品，以下是詳細介紹。
Shanghai Songjiang shock absorber Group Co., Ltd. official website for you to introduce: [physical analysis] Song Jiang Group single ball rubber joint analysis "teach you to see the face of the face" information, Songjiang group for the Internet users to provide professional knowledge of rubber joint industry, teach you how to discern a good product, the following is a detailed introduction.

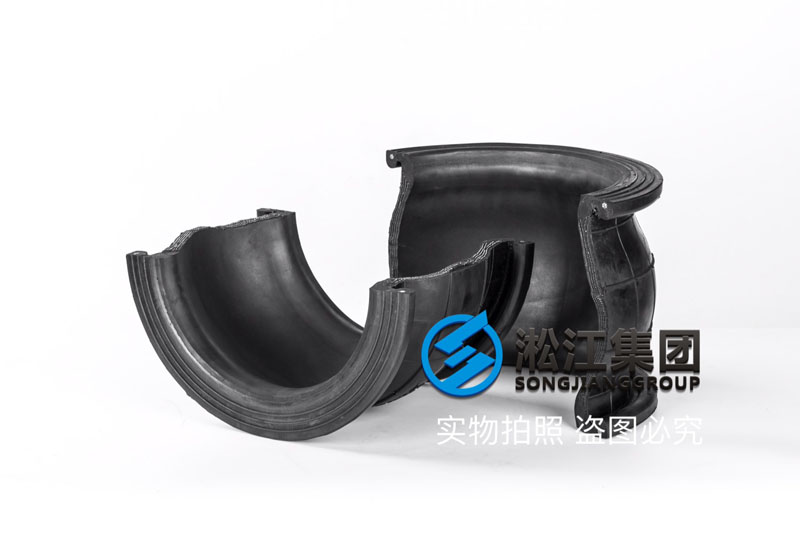

一、單球橡膠接頭剖析實物拍照：

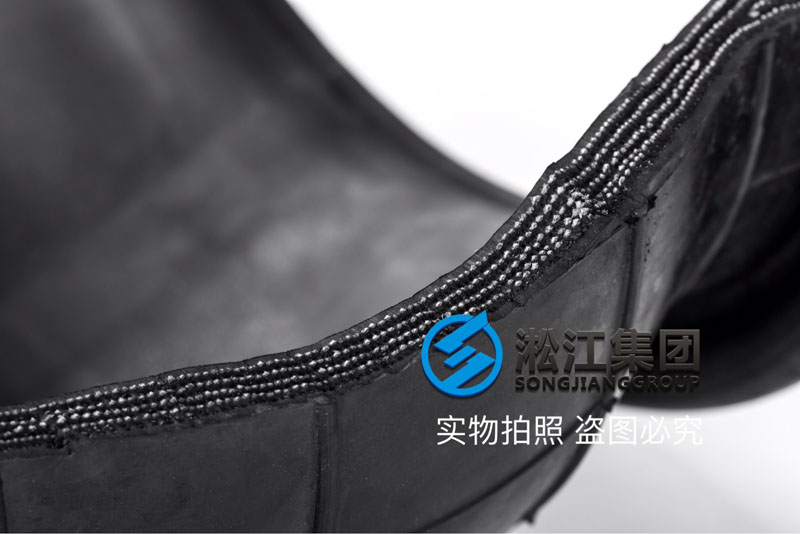

所謂的鋼絲就是橡膠管體兩端的加強鋼絲，這個鋼絲起到了防脫的功能，避免橡膠盤從法蘭扣槽內脫出，起到加固的作用，然而中間的部分里面并沒有鋼絲，如下圖：
The so-called steel wire is the reinforcing steel wire at both ends of the rubber pipe body. This steel wire plays the function of preventing and removing, avoiding the rubber plate from pulling out of the flange slot and playing the role of strengthening. However, there is no steel wire in the middle part, as follows:

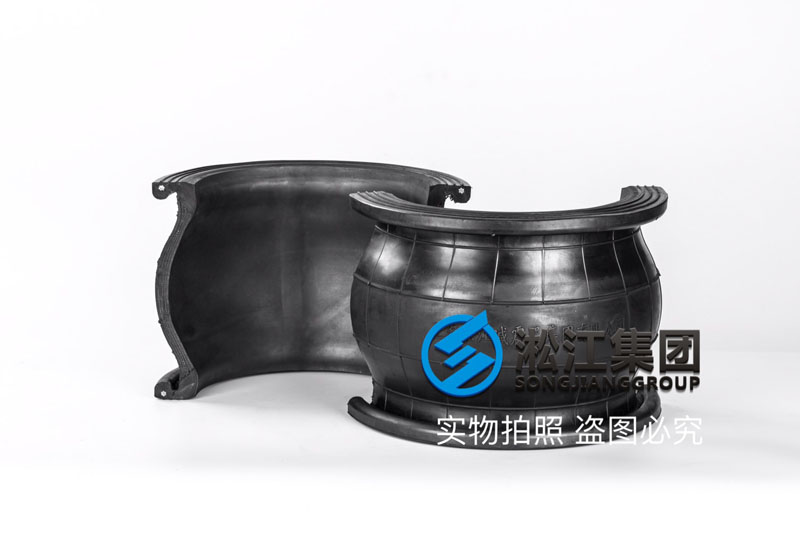

如上圖：內部結構主要包括：內層膠、骨架層、外層膠，三大類組成，內層膠起到保護的作用，外層橡膠起到防老化的作用，中間的骨架層起到了承壓的作用，淞江集團生產的所有橡膠接頭里面都采用與輪胎骨架層一致的聚酯簾布，厚度和層數都是加厚生產，做到萬無一失，淞江集團橡膠接頭16kg的嚴格按照國家標準1.5倍的檢測壓力，輕輕松松到達結果。
For example, the internal structure mainly includes inner layer glue, skeleton layer and outer layer glue. The inner layer is composed of three kinds, the inner rubber plays the role of protection, the outer rubber plays the anti aging effect, the middle skeleton plays the pressure effect. All the rubber joints produced by the Songjiang group are in the same polyester with the tire skeleton layer. The cord, the thickness and the number of layers are all thickened, so that the rubber joint 16KG of Songjiang group is strictly in accordance with the national standard of 1.5 times the test pressure, light and loose to reach the result.

一個優質的橡膠接頭并不是只要有良好的生產工藝就合格的，那么原材料的選擇也是必不可缺少的一部分重要環節，那么看看淞江集團生產的橡膠接頭是如何選擇原材料的，了解詳細請點擊：淞江集團橡膠接頭原材料介紹
A high quality rubber joint is not as long as the good production process is qualified, then the selection of raw materials is also a part of the important link, then look at the rubber joint produced by Songjiang group is how to select the raw material, to understand the detailed click the above link.

一套科學 的橡膠接頭生產流程的結果必不可缺少的就是性能檢測，一般大多數都是檢測了承壓，承壓只是一時的合格，而性能的檢測是對產品使用的效果檢測，這也是對客戶的尊重，后面我們還會有爆破壓力檢測和疲勞檢測等更、更負責的把橡膠接頭產品做好。了解淞江集團橡膠接頭性能檢測請點擊：2018年橡膠接頭性能檢測結果報告
A set of scientific rubber joint production process results must not be lack of performance testing, most of which are tested under pressure, the pressure is only qualified for a moment, and the performance testing is the test of the effect of the use of the product, which is also the respect to the customers, and we will also have the blasting pressure testing and fatigue testing. More professional and more responsible for the rubber joint products. To understand the performance of Songjiang group's rubber joint, please click on the above link.

一個優質的橡膠接頭是從：原材料-科學的配方-自動化的混煉-自動化的成型-自動化的硫化-成品檢測-性能檢測，這樣才能對客戶說，我們的產品是合格的，請放心使用。
A high quality rubber joint is from: raw material - scientific formula - automatic mixing - automatic molding - Automatic vulcanization - product testing - performance testing in order to say to customers that our products are qualified, please be assured of use.
